Overview
Pure Handcrafted Sound: Meticulously handcrafted for premium acoustic performance and robust build quality.
Rich Acoustic Profile: Delivers deep, full mid-bass, transparent and sweet midrange vocals, and delicate, pure high frequencies.
High-Grade Tweeter: Features a 25mm silk dome tweeter with a neodymium magnet for rich,?? and non-fatiguing high-frequency detail.
Durable Cone Design: Black and white fiberglass woven cone with a rubber surround ensures durability and accurate sound reproduction.
Advanced Crossover Network: Transparent crossover box with a 12dB slope, high-stability electrolytic capacitors, and polyester capacitor auto-protection.
Powerful Magnet Assembly: 90mm Y30 ferrite magnet with a protective rubber cover provides a strong, efficient magnetic field.
High-Frequency Adjustment: Includes a +/-3dB tweeter level adjustment for customized sound staging.
Low Resonance Tweeter: Ultra-low frequency resonance tweeter design at 1500Hz for seamless integration with the mid-woofer.
Specifications

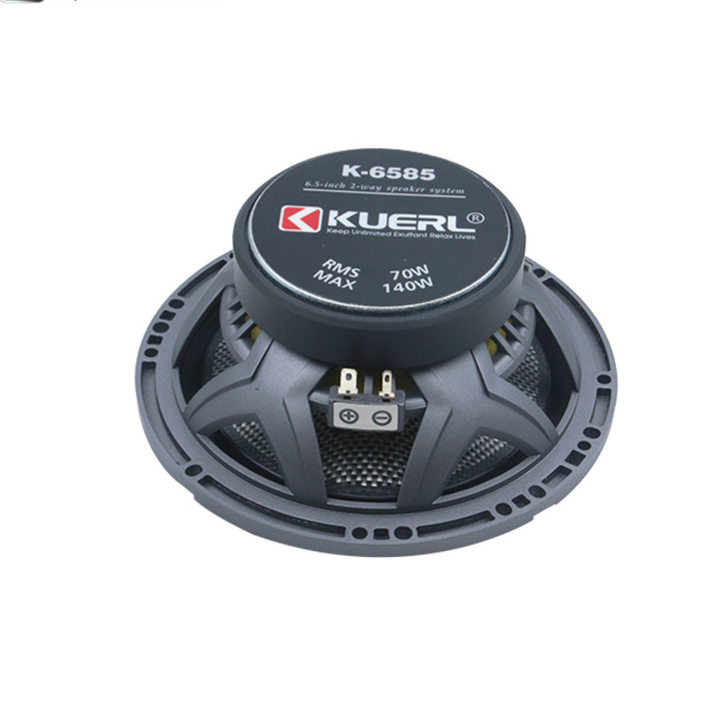

Model: K-6585
Speaker Type: 2-Way Component System
Woofer Size: 6.5 inches / 165 mm
Frame Material: Plastic Steel
Cone Material: Fiberglass
Tweeter Material: Silk Dome
Peak Power: 140W
RMS Power: 70W
Impedance: 4 Ohm
Sensitivity: 88 dB (1m/1w)
Frequency Response: 65 Hz - 20 kHz
Distortion: <0.1%
Crossover Points: Low-pass 3200 Hz, High-pass 3500 Hz (12 dB/Oct)
Magnet Type: 90mm Y30 Ferrite
Voice Coil Former: KAPTON
Weight: 2.95 kg
Voltage: 12V

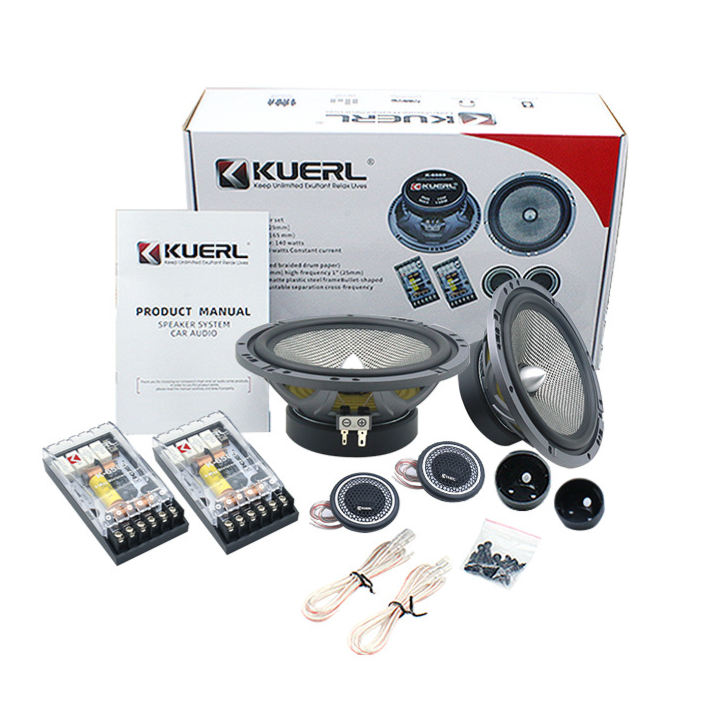

Packing List
mid-woofer*2
tweeter*2
crossover*2
user manual*1
